K083276

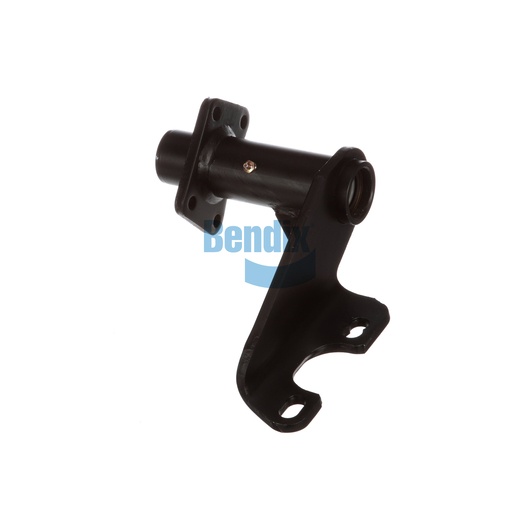

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Ensure optimal safety and performance for your commercial vehicle with this Bracket Assembly, expertly crafted for Bendix drum brake systems. This assembly features a scalloped arm style and durable bronze bushings that enhance its longevity and reliability. Designed with a centerline length of 10.56 inches and a camshaft bracket angle of 316° CCW, it allows for precise installation and alignment. The adjustable slack length of 5.50 to 6.00 inches makes this component versatile across various applications. This bracket assembly plays a critical role in ensuring your vehicle's braking system operates smoothly and efficiently. For genuine Bendix OEM parts, Source One Parts Center is your best option, providing the quality and service you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
316° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.33 lb
