K083303

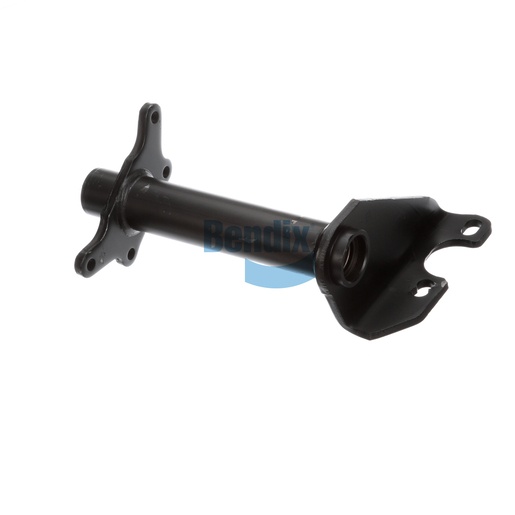

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Built to last, the Bendix Bracket Assembly is an integral part of your foundation drum brake system, providing essential support for air chambers and camshafts. With a robust construction featuring aluminum and bronze bushings, this assembly is designed to withstand the demands of rigorous driving conditions. The full arm style and a length of 5.50 to 6.00 inches, combined with a camshaft bracket angle of 56° CW, ensure precise alignment and secure fitment. This high-quality assembly not only enhances the performance of your braking system but also contributes to the overall safety and reliability of your vehicle. For the best in genuine Bendix OEM parts, look no further than Source One Parts Center, where quality meets dependability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.25
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Full
Country of Origin
United States
Weight
15.15 lb
