$349.95
$419.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

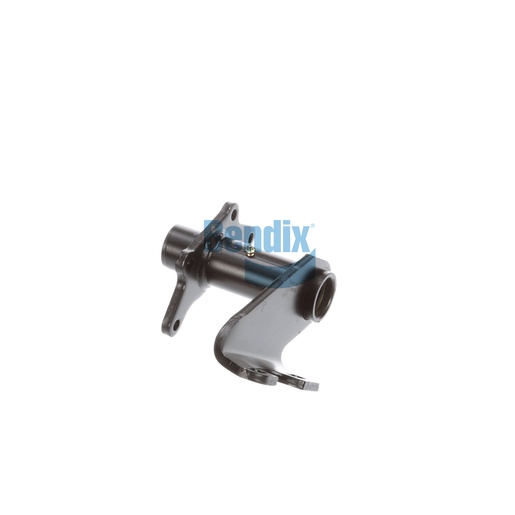

The Bendix Bracket Assembly is expertly designed to enhance the functionality of your drum brake systems in commercial vehicles. Made with durable materials, it features a scalloped arm style and nylon bushings, ensuring robust support and stability under demanding conditions. With a slack length ranging from 5.50 to 6.00 inches and a camshaft bracket angle of 314° counterclockwise, it facilitates precise movements and effective braking. This assembly is crucial for the safety and reliability of your vehicle's braking system. Choose Source One Parts Center for genuine Bendix OEM parts, where quality and performance meet for your commercial vehicle applications.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.22
Camshaft Bracket Angle
314° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
11.15 lb
