$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

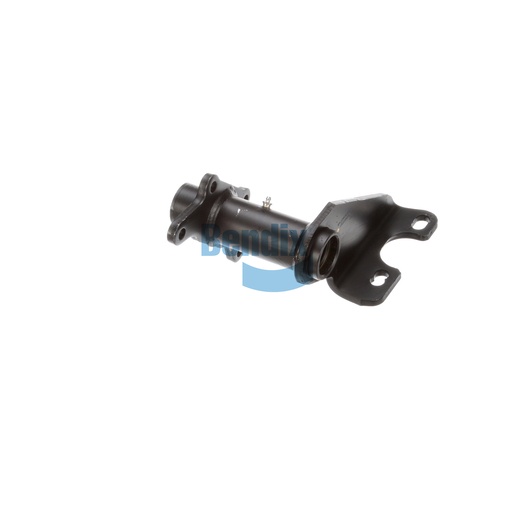

The Bendix Bracket Assembly is meticulously crafted to deliver essential support for your commercial truck's foundation drum brakes. With a full arm style and single gusset, this assembly offers enhanced durability and stability. The gusset angle of 40° and camshaft bracket angle of 314° CW help ensure precise alignment, which is vital for effective braking performance. Featuring nylon bushings for both inboard and outboard sides, this assembly guarantees smooth operation and long life, reducing maintenance needs. It measures between 5.50 to 6.00 inches in slack length and has a centerline to centerline length of 10.22 inches, making it adaptable for various applications. When looking for Bendix OEM parts, Source One Parts Center stands out as the premier choice, offering unmatched quality and reliability for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.22
Camshaft Bracket Angle
314° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
11.5 lb
