K083356
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

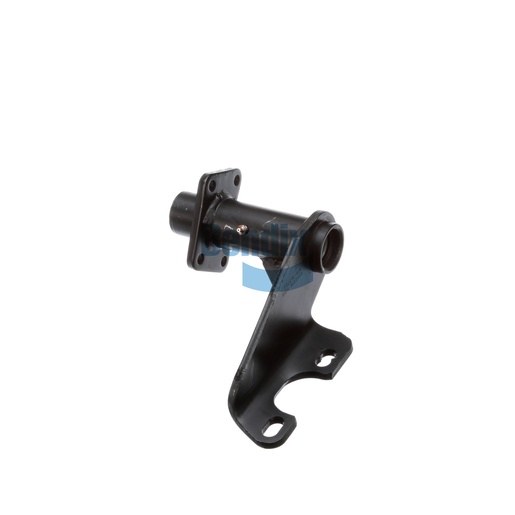

The Bendix Bracket Assembly is an essential part of your truck's foundation drum brake system, designed to provide superior stability and performance. Its single gusset design with a scalloped arm style ensures that it can withstand the demanding forces experienced during braking. Featuring nylon bushings and a camshaft bracket angle of 328° counterclockwise, it allows for precise adjustments, which are crucial for maintaining optimal brake function. With a length of 10.56 inches from centerline to centerline and a weight of 5.0 kg (10.98 lb), this assembly strikes a perfect balance between strength and ease of installation. When it comes to sourcing Bendix OEM parts, Source One Parts Center stands out as the best choice for quality and reliability, ensuring your vehicle operates safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
328° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
10.98 lb
