K083357

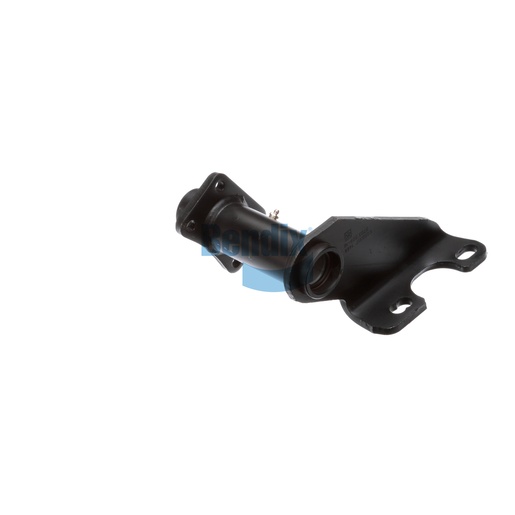

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical component for foundation drum brakes, engineered to provide exceptional support for air chambers and camshafts. This assembly features a scalloped arm style that enhances its strength and stability under heavy loads, while the nylon and bronze bushings ensure smooth operation and long-lasting durability. With a camshaft bracket angle of 328° clockwise, it allows for precise alignment, promoting effective braking performance. Weighing in at 5.0 kg (11.0 lb), this assembly is lightweight enough for easy installation, yet robust enough to withstand demanding conditions. Proudly made in the USA, this part reflects the commitment to quality that Bendix is known for. If you're looking to enhance your vehicle's braking capabilities, choosing this genuine OEM part is essential. Source One Parts Center is your trusted source for authentic Bendix components, ensuring you receive the quality you need for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
328° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11 lb
