K083362
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

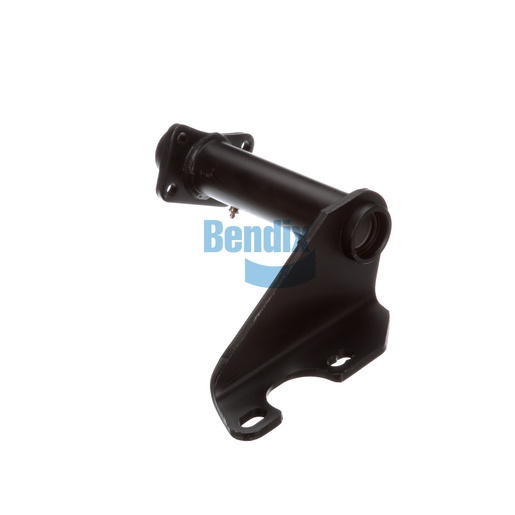

The Bendix Bracket Assembly is expertly designed to provide reliable support for air chambers and camshafts in drum brake systems. With a structural design that includes a single gusset and a full arm style, this assembly ensures excellent stability and load distribution, enhancing overall brake performance. Its combination of nylon and bronze bushings promotes smooth operation and longevity, making it a vital component for commercial vehicle maintenance. Featuring a 40° gusset angle and precise dimensions, it is adaptable for various applications, ensuring compatibility with different setups. For the best in genuine Bendix OEM parts, Source One Parts Center is your trusted source for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.75
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.61 lb
