K083363

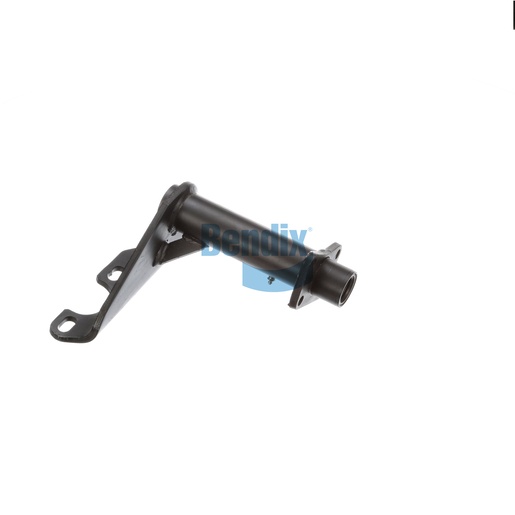

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Engineered for excellence, the Bendix Bracket Assembly is a crucial component for foundation drum brakes, ensuring durability and performance under demanding conditions. With a single gusset and a full arm style, this assembly boasts a robust construction that enhances structural integrity. The assembly features nylon and bronze bushings, providing smooth operation and reducing wear and tear over time. With a length of 5.50 to 6.00 inches and a 60° CW camshaft bracket angle, this assembly is adaptable for various applications, ensuring a perfect fit. The attention to detail in the design translates into improved braking performance, ultimately enhancing safety on the road. For genuine Bendix OEM parts that you can trust, Source One Parts Center is your go-to source, ensuring you receive only the best for your commercial fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.75
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.6 lb
