K083377
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

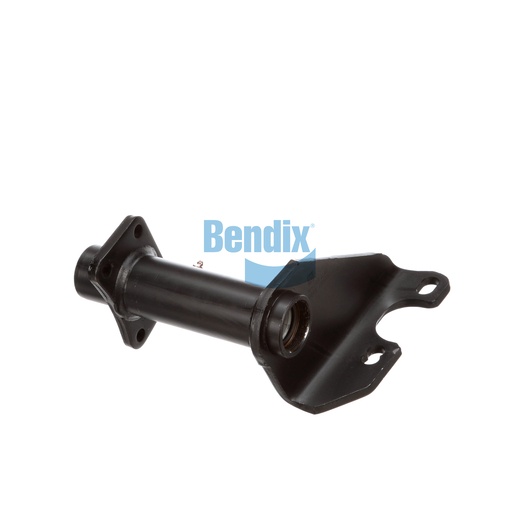

The Bendix Bracket Assembly is a vital component that ensures the secure positioning of your truck's braking system. Designed with precision, this assembly features a single gusset and a full arm style, providing exceptional support and stability. With a gusset angle of 40° and nylon bushings, it minimizes friction and wear, enhancing the longevity of your braking components. This bracket measures 11.56 inches centerline to centerline and is designed for slack lengths ranging from 5.50 to 6.00 inches, making it versatile for various truck models. Weighing in at 12.54 pounds, it is lightweight yet robust, ensuring easy installation without compromising on strength. This assembly plays a crucial role in maintaining effective brake performance, making it an essential part for any commercial vehicle. Source One Parts Center is your ideal destination for authentic Bendix OEM parts that offer reliability and quality for your fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
345° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.54 lb
