K083390

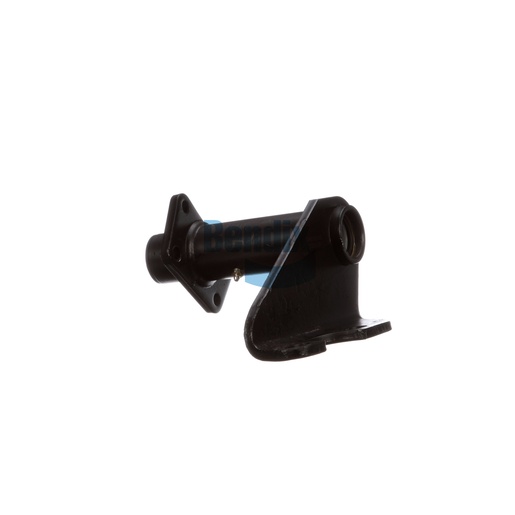

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is designed to provide essential support for air chambers and camshafts in foundation drum brakes. Its sturdy construction, featuring a single gusset and full arm style, ensures stability and reliability under heavy-duty conditions. This bracket assembly is engineered for optimal performance, allowing for easy installation and maintenance. The precise dimensions and robust materials used in its design minimize the risk of failure, ultimately enhancing the safety and efficiency of your braking system. By choosing this assembly, you ensure that your vehicle's braking components are securely mounted, which is critical for safe operation. For genuine Bendix OEM parts, Source One Parts Center is your trusted supplier, committed to providing quality solutions for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.8 lb
