K083391
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

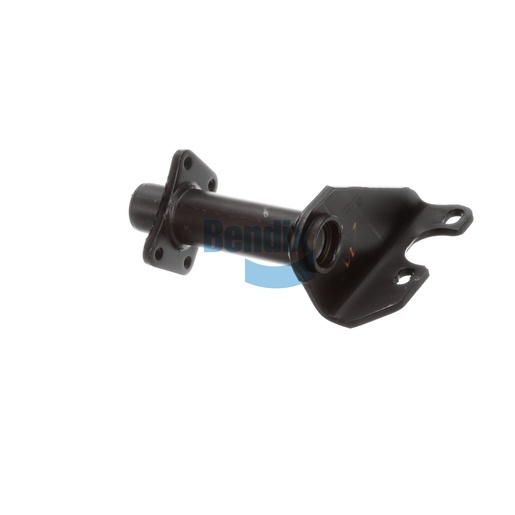

The Bracket Assembly is an essential component designed to enhance the effectiveness of your vehicle's braking system. This unit features a single gusset and full arm style, providing strong support for both air chambers and camshafts. With a gusset angle of 40° and bushings made from durable nylon and bronze, it ensures smooth operation under demanding conditions. The assembly measures between 5.50 to 6.00 inches in slack length and 11.50 inches from centerline to centerline, making it suitable for a variety of installations. The 50° CW camshaft bracket angle optimizes performance, allowing for efficient braking action. Investing in this high-quality assembly means investing in your vehicle's safety and performance. For genuine Bendix OEM parts, Source One Parts Center stands out as the top choice, providing unmatched quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.57 lb
