K083392

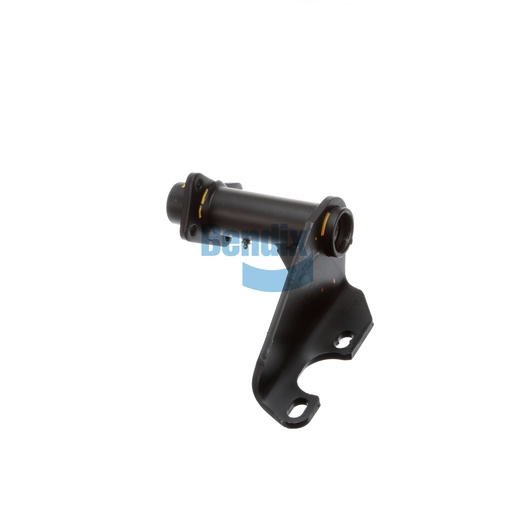

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a thoughtfully designed component that plays a crucial role in the effectiveness of your truck's braking system. Constructed with high-quality materials, this assembly ensures robust support for brake components, enhancing their performance and durability. Its unique features, including a full arm style and nylon bushings, contribute to its ability to withstand heavy-duty conditions while maintaining reliability. The precise engineering allows for easy installation and seamless integration into your vehicle, making it a valuable addition for fleet maintenance. For those seeking genuine Bendix OEM parts, Source One Parts Center is the premier destination, ensuring you receive authentic components that meet the highest standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CCW
Harmonized System (HS) Code
830230
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.36 lb
