K083393

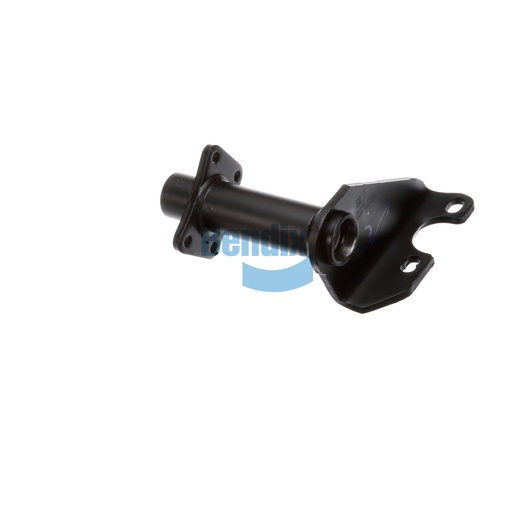

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential part of your commercial vehicle's braking system, engineered for strength and durability. This assembly features a full arm style with a single gusset, providing robust support for air chambers and camshafts. With nylon bushings for both inboard and outboard positions, it ensures smooth operation under high-stress conditions. The assembly has a slack length of 5.50 to 6.00 inches and a centerline measurement of 11.50 inches, making it versatile for various applications. The camshaft bracket angle of 50° CW enhances leverage for effective braking action. By investing in this high-quality assembly, you enhance your vehicle's braking reliability. For genuine Bendix OEM parts, Source One Parts Center is the best choice, ensuring quality and dependability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CW
Harmonized System (HS) Code
830230
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.33 lb
