K083410

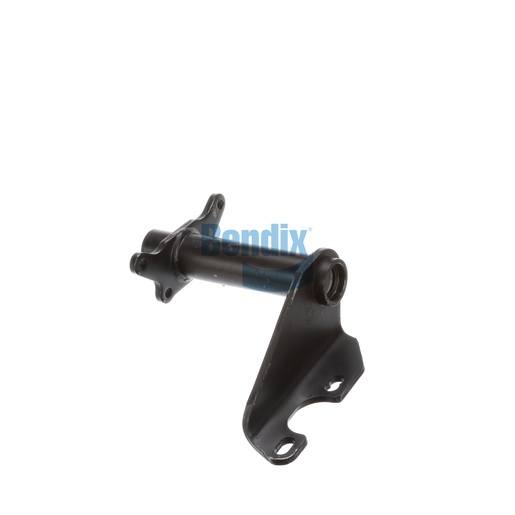

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is designed for foundation drum brakes, providing essential support for air chambers and camshafts. This assembly features a full arm style and nylon bushings, ensuring smooth operation and longevity in demanding conditions. The gusset design enhances strength and stability, while the specific camshaft bracket angle ensures proper alignment for optimal braking performance. Weighing approximately 13.95 pounds, this bracket is built to last, providing reliable support that fleet operators can depend on. With an easy installation process, this component minimizes downtime for your vehicles. Choose Source One Parts Center for all your Bendix OEM parts, and experience the quality and reliability that keeps your fleet running smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
84° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.95 lb
