K083411

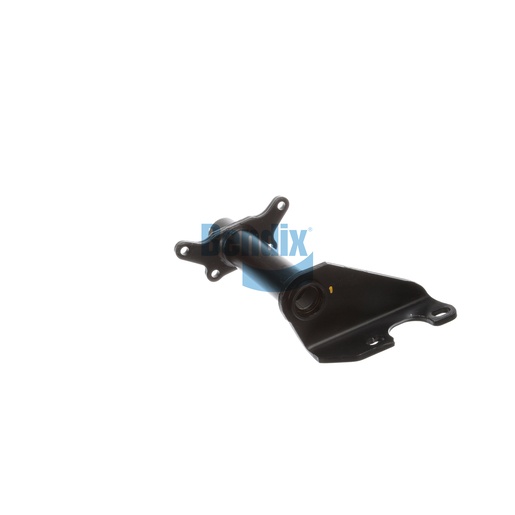

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered for durability and reliability, playing a key role in your truck's foundation drum brakes. Featuring a full arm style and a single gusset design, this assembly provides exceptional strength. Its gusset angle of 40° and camshaft bracket angle of 84° CW ensure precise alignment, improving the overall performance of your braking system. With nylon bushings for both inboard and outboard sides, this part is built to last, offering smooth operation and minimizing wear. Its slack length of 5.50 to 6.00 inches, combined with a centerline to centerline length of 13.50 inches, makes it adaptable for various applications. Trust Source One Parts Center for your Bendix OEM parts, as we provide only the best quality components to keep your commercial vehicle running safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
84° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.77 lb
