K083414

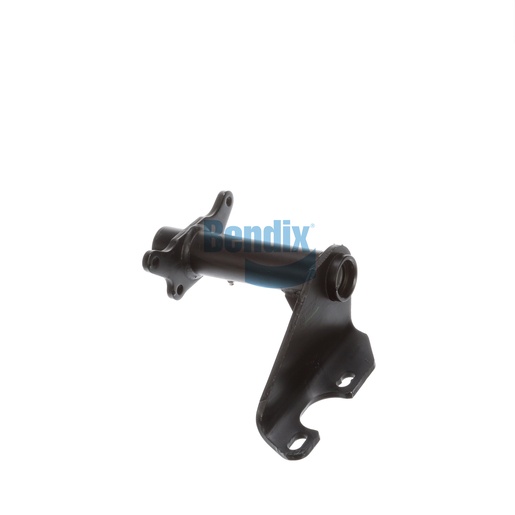

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly designed to provide robust support for your vehicle's air chamber and camshaft, ensuring reliable braking performance. Weighing 6.2 kg, this assembly is constructed for durability and longevity, making it an essential component for any commercial vehicle. Its precision engineering guarantees compatibility with various braking systems, facilitating easy installation and effective operation. This bracket assembly not only meets but often exceeds OEM specifications, providing peace of mind for fleet operators. For the best selection of genuine Bendix parts, Source One Parts Center is your trusted partner, committed to delivering exceptional service and quality products.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
84° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.76 lb
