K083415

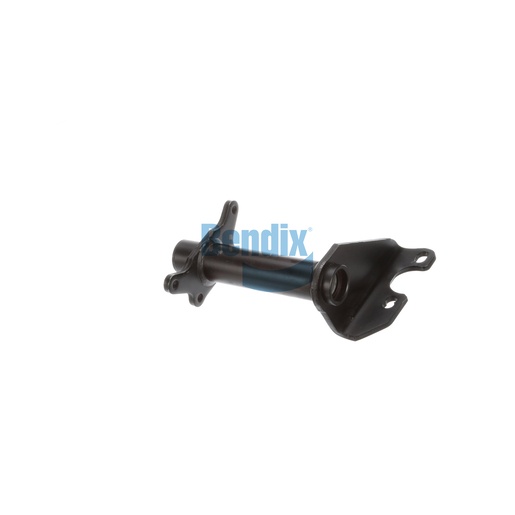

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Designed for optimal functionality, the Bracket Assembly offered by Bendix serves as a vital support for foundation drum brakes. This high-quality assembly is manufactured in the USA and features a unique scalloped arm style that enhances its structural integrity. The inclusion of nylon and nylon bushings ensures smooth operation and minimizes friction, which is crucial for the longevity of your braking system. With a camshaft bracket angle of 84° CW and a centerline-to-centerline measurement of 13.50 inches, this assembly is designed to fit seamlessly within your braking system. Its robust construction not only offers stability but also withstands the rigors of heavy-duty applications. Trust Source One Parts Center for your genuine Bendix OEM parts, where you will find the best selection and service for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
84° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.79 lb
