K083421

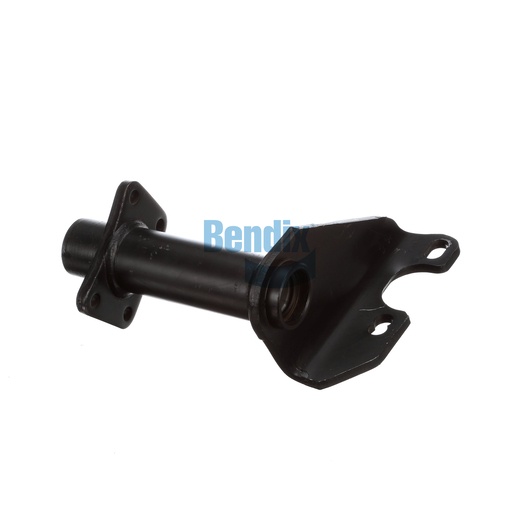

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly is designed for foundation drum brakes, providing vital support and strength to the braking system. With a full arm style and single gusset design, it is built for durability and reliable performance. The assembly features nylon and bronze bushings that reduce friction and wear, enhancing the longevity of your braking components. Its adjustable length of 5.50 IN to 6.00 IN ensures compatibility across various applications. This bracket assembly is crucial for maintaining effective braking performance. When it comes to purchasing genuine Bendix OEM parts, Source One Parts Center is your best option, offering a wide range of quality products tailored for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.6 lb
