$419.95
$503.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

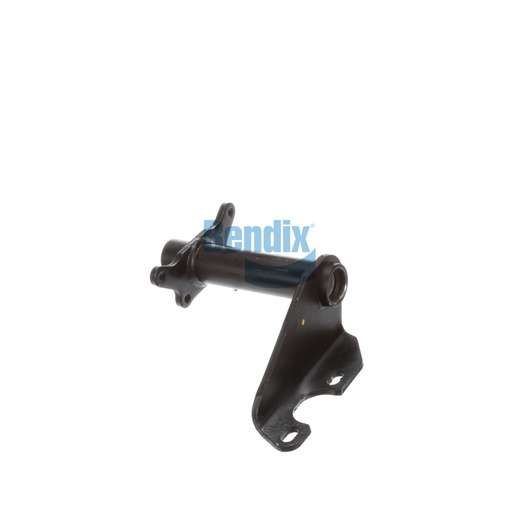

This Bracket Assembly plays a critical role in the functionality of foundation drum brakes, providing essential support and alignment for the brake components. Designed with a full arm style and featuring durable nylon and nylon bushings, it minimizes friction and wear, thereby extending the life of the braking system. The precise engineering of this assembly ensures a perfect fit and optimal performance in demanding commercial applications. Quick and straightforward to install, this Bracket Assembly is perfect for fleet maintenance, allowing you to keep your vehicles operational with minimal downtime. For high-quality Bendix OEM parts, Source One Parts Center is your go-to destination, ensuring you receive components that meet rigorous industry standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.6 lb
