K083423

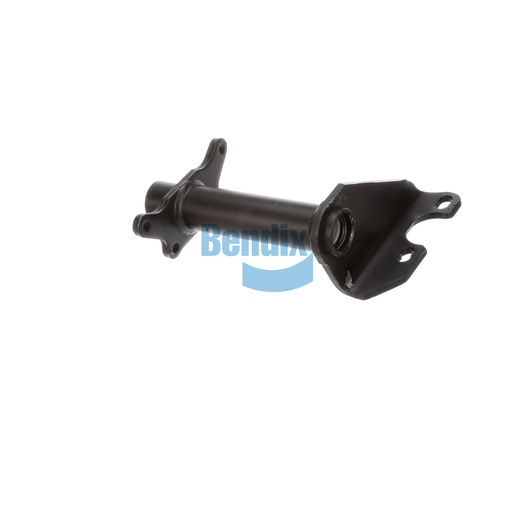

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential part of your foundation drum brakes, designed to provide reliable support and stability. Featuring a full arm style and constructed with durable nylon bushings, this assembly is built to withstand the demanding conditions of commercial vehicle applications. The camshaft bracket angle of 90 degrees clockwise ensures precise fitment, enhancing the braking system's overall performance. With a slack length of 5.50 inches, it is versatile enough to accommodate various installations. Weighing 13.6 lbs, it strikes the perfect balance between strength and manageability, facilitating easy installation and maintenance. By investing in this bracket assembly, you are enhancing the safety and reliability of your braking system. Source One Parts Center is the best place to purchase genuine Bendix OEM parts for commercial vehicles, providing you with the quality and reliability you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.6 lb
