K083466

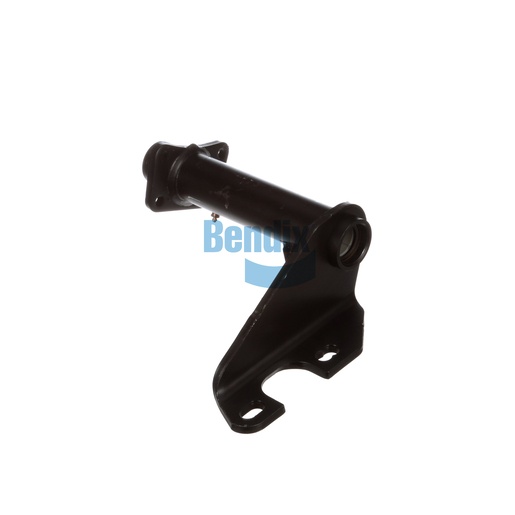

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Bendix's Bracket Assembly is engineered to provide robust support for air chambers and camshafts in your commercial vehicle's braking system. This essential component is made from high-quality materials, ensuring it withstands the demands of heavy-duty applications. The assembly features nylon bushings for enhanced durability, promoting longer service life and reliable performance. Its precise design allows for easy installation, ensuring that your vehicle experiences minimal downtime during repairs. By choosing this bracket assembly, you ensure that your braking system operates efficiently, which is crucial for safety. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, providing unmatched quality for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.63
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
66° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.4 lb
