K083467

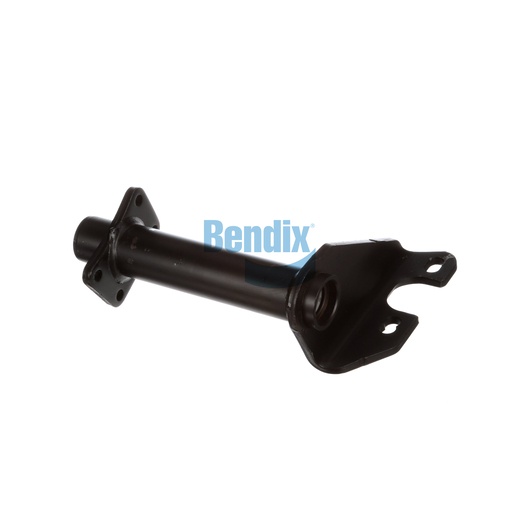

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component designed to enhance the functionality and stability of your vehicle's foundation drum brakes. Made in the USA, this assembly features a full arm style and a gusset angle of 40°, providing exceptional strength and support. The nylon inboard and bronze outboard bushings are built to endure heavy use, ensuring long-lasting performance. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 66° clockwise, it allows for versatile installation options across different truck models. This assembly is essential for maintaining optimal braking performance. For high-quality Bendix OEM parts, Source One Parts Center is your reliable partner for all your truck maintenance needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.63
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
66° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.4 lb
