K083473
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

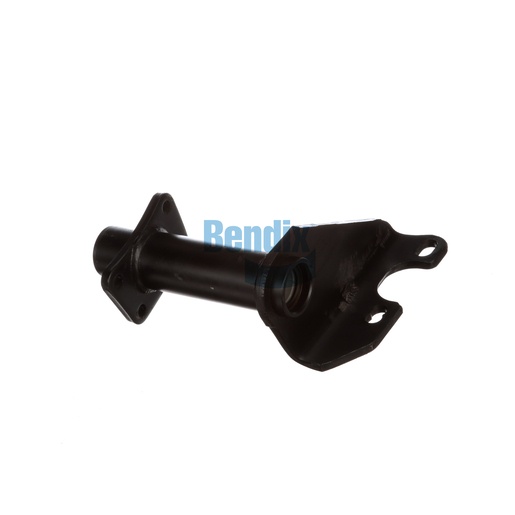

The bracket assembly from Bendix is an essential component of the foundation drum brake system, providing robust support and stability for air chambers and camshafts. Its full arm style with a single gusset design enhances structural integrity, making it ideal for heavy-duty applications. Constructed with durable nylon and bronze bushings, this assembly is built to endure significant wear and tear, promoting longevity and reducing maintenance costs. With a camshaft bracket angle of 76° CW and a slack length of 5.50 IN to 6.00 IN, it is engineered for precise alignment and optimal functionality, ensuring smooth operation of the braking system. This assembly’s versatility makes it suitable for a variety of truck models, making it a key component for any fleet. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you receive high-quality components tailored to your needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
76° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.61 lb
