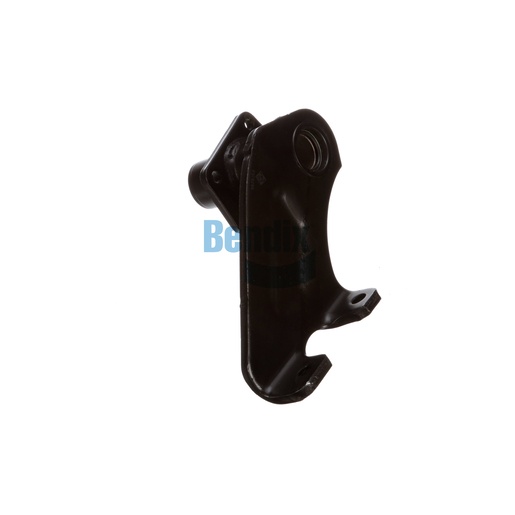

K083478
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is meticulously crafted to enhance the performance of your truck's braking system. Featuring a single gusset design and a full arm style, this assembly provides the necessary strength and stability required for heavy-duty applications. The nylon and bronze bushings reduce friction, promoting smooth operation and extending the life of your braking components. With a slack length ranging from 5.50 to 6.00 inches and a camshaft bracket angle of 40° CCW, this assembly ensures optimal positioning, making it a reliable choice for operators. When it comes to ensuring your vehicle's braking system is performing at its best, the Bendix Bracket Assembly is a top-tier option. For those seeking genuine Bendix OEM parts, Source One Parts Center is your best source, delivering authentic components that uphold quality and performance standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
278° CCW
Gusset Angle
53°
Length (Slack Length)
6.00 IN
Length (Centerline to Centerline) [IN]
8.63
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
13.04 lb
