$469.95
$563.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

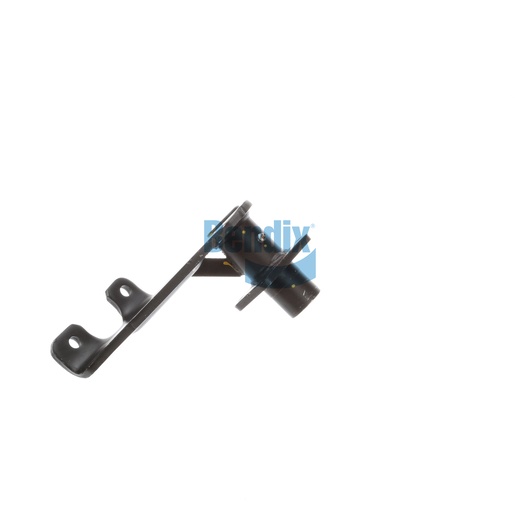

The Bracket Assembly is an integral part of the foundation drum brakes in commercial vehicles, designed to enhance structural integrity and performance. With a scalloped arm style and bronze bushings, this assembly provides a high level of durability and resistance to wear, making it a reliable choice for heavy-duty applications. The camshaft bracket angle of 278° CW allows for precise alignment in brake installations, ensuring optimal function and safety. It is built to withstand the rigorous demands of commercial use, and its straightforward installation process makes it suitable for both maintenance and upgrades. Investing in this bracket assembly will help ensure your braking system operates efficiently, enhancing overall vehicle safety. For purchasing genuine Bendix OEM parts, Source One Parts Center is your preferred provider, offering quality you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
278° CW
Gusset Angle
53°
Length (Slack Length)
6.00 IN
Length (Centerline to Centerline) [IN]
8.63
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
13.66 lb
