$319.95
$383.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

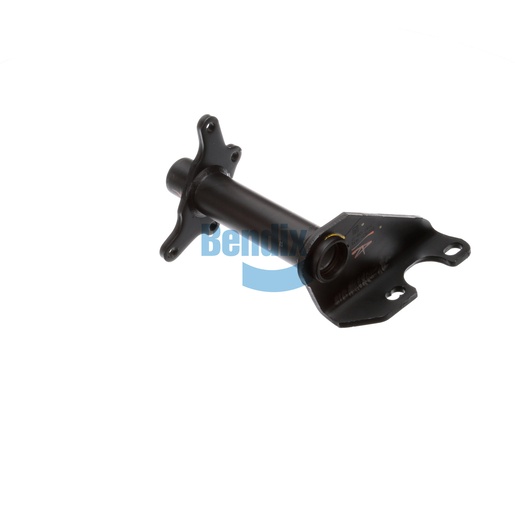

The Bracket Assembly is an essential component for maintaining the functionality and safety of your vehicle's braking system. This assembly, with its single gusset and full arm design, ensures exceptional strength and durability, making it ideal for heavy-duty applications. The nylon bushings provide smooth operation, while the precise camshaft bracket angle of 30° CW allows for optimal alignment and performance. With a centerline length of 13.50 inches, this bracket assembly is designed for easy integration into existing brake systems. By replacing worn or damaged components with this high-quality assembly, vehicle operators can enhance braking efficiency and safety. For a reliable source of genuine Bendix OEM parts, look no further than Source One Parts Center, where quality meets dependability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Camshaft Bracket Angle
30° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.8 lb
