K083494

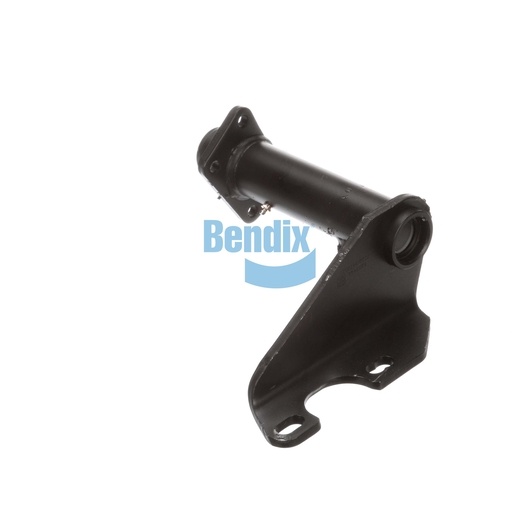

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly designed to support your vehicle's foundation drum brakes, providing essential stability and performance. Manufactured in the USA, this assembly features a full arm style with a single gusset for enhanced strength and durability. The combination of nylon inboard bushing and bronze outboard bushing ensures that it can withstand the rigors of heavy-duty use. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 30° counterclockwise, this assembly offers versatility for various configurations. Its precise engineering, with a centerline length of 13.50 inches, guarantees a perfect fit in a wide range of commercial vehicles. Choosing genuine Bendix OEM parts ensures reliability and performance, and Source One Parts Center is your premier destination for all your truck parts needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Camshaft Bracket Angle
30° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.8 lb
