$299.95
$359.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

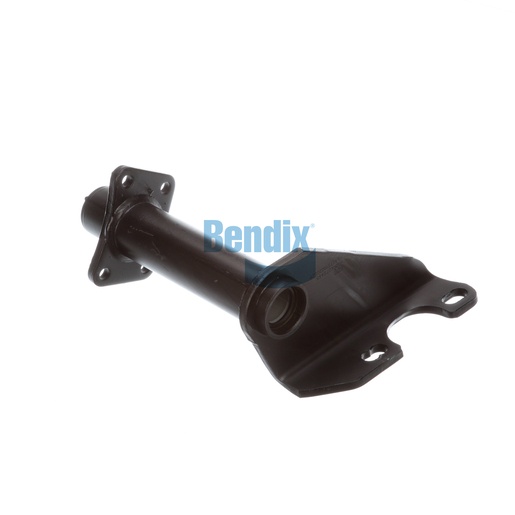

The Bendix Bracket Assembly is a fundamental component engineered for foundation drum brake systems, providing essential support for air chambers and camshafts. This assembly features a single gusset and full arm style, designed to withstand the demands of heavy-duty applications. With nylon and bronze bushings, it ensures durability and reduced wear, enhancing the longevity of your braking system. The camshaft bracket angle of 30° CW optimizes performance, while the slack length of 5.50 in provides flexibility during installation. With a centerline length of 13.50 in, this bracket assembly fits various configurations effortlessly. Its robust construction guarantees reliable performance, ensuring your vehicle remains safe and operational. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best place to find quality components that enhance your fleet's reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Camshaft Bracket Angle
30° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.3 lb
