$244.95
$293.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

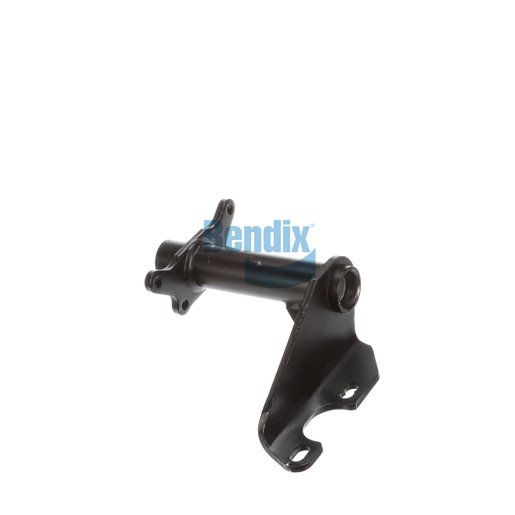

This Bracket Assembly is an essential component for maintaining optimal brake performance in Bendix Foundation Drum Brakes systems. With its full arm style and single gusset design, it delivers the necessary support for air chambers and camshafts, ensuring effective braking action. The assembly features nylon bushings for both inboard and outboard applications, providing long-lasting durability and resistance to wear. Measuring 13.50 inches from centerline to centerline, this bracket is designed for versatility across various truck models. The camshaft bracket angle of 90° counterclockwise enhances its compatibility with many brake setups. Its quality construction, made in the USA, guarantees reliability in even the toughest environments. For those seeking genuine Bendix OEM parts, Source One Parts Center is your premier source, offering an extensive selection of high-quality components for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.76 lb
