$244.95
$293.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

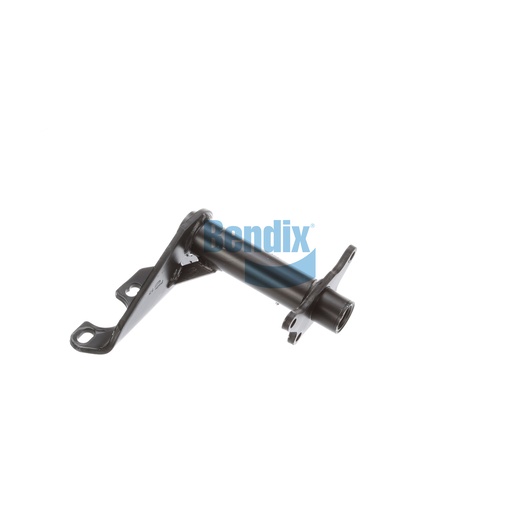

The Bendix Bracket Assembly is an essential part for maintaining the efficiency of your vehicle’s foundation drum brakes. Made with high-quality materials in the USA, this assembly features a full arm style and a single gusset that ensures strength and stability under pressure. With its nylon inboard bushing and nylon outboard bushing, this bracket provides smooth operation and longevity, even in the toughest conditions. The adjustable slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 90° clockwise allow for flexible installation options, ensuring a perfect fit for various applications. Its dimensions make it a reliable choice for enhancing the braking system's overall performance. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted resource for superior quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.8 lb
