K083500

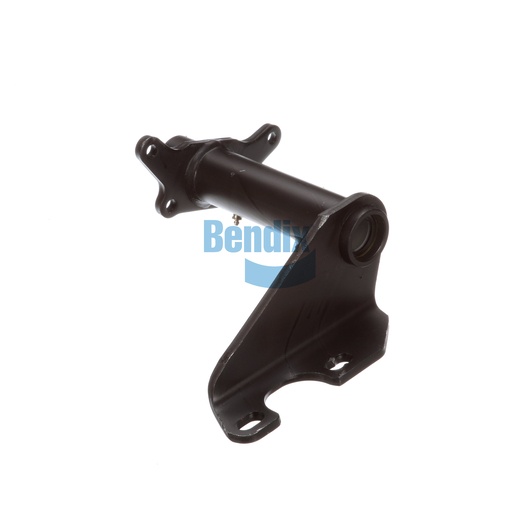

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly designed to support air chambers and camshafts, playing a crucial role in the effectiveness of your vehicle's braking system. With a robust single gusset and full arm style, this assembly is built for heavy-duty use. It features a length range of 5.50 to 6.00 inches and a centerline distance of 13.50 inches, providing versatility for various applications. The nylon bushings ensure smooth operation and durability, while the camshaft bracket angle of 70 degrees CCW allows for precise adjustments. For genuine Bendix OEM parts, trust Source One Parts Center to provide high-quality solutions for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14 lb
