K083517

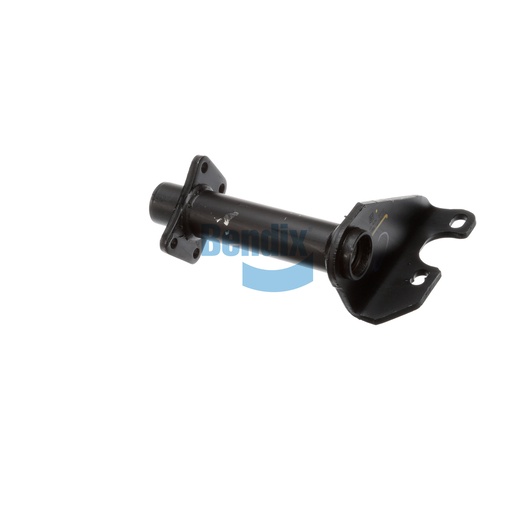

Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Bendix's Bracket Assembly is a crucial component for enhancing the performance of your foundation drum brakes. This assembly is designed to provide robust support for air chambers and camshafts, ensuring the proper alignment necessary for effective braking. Constructed from high-quality materials, it ensures durability and reliability, even under the most demanding conditions. The precision engineering allows for easy installation and compatibility with various braking systems, making it ideal for both new builds and replacements. For your genuine Bendix OEM parts, turn to Source One Parts Center, where our commitment to quality and customer satisfaction ensures you receive the best for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
830230
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.5 lb
