K083522
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

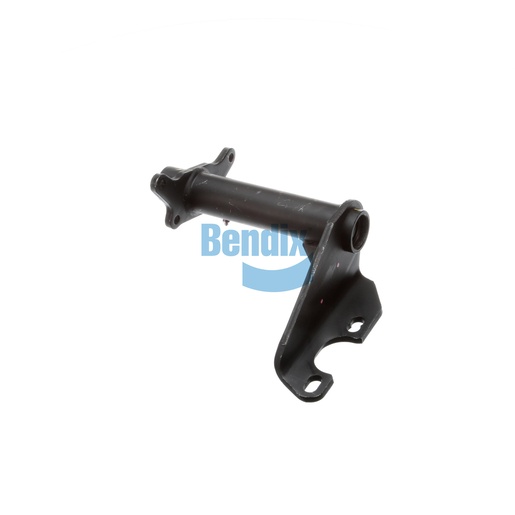

The Bracket Assembly from Bendix is an essential part of the foundation drum brake system, providing critical support for air chambers and camshafts. Constructed with a full arm style and nylon bushings, this assembly ensures smooth operation and long-lasting durability. Its gusset design enhances strength, making it perfect for demanding commercial vehicle applications. Weighing around 14.82 pounds, this bracket assembly is engineered for easy installation, minimizing downtime for your fleet. Choose Source One Parts Center for all your Bendix OEM parts needs, ensuring you get the highest quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.82 lb
