K083523
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

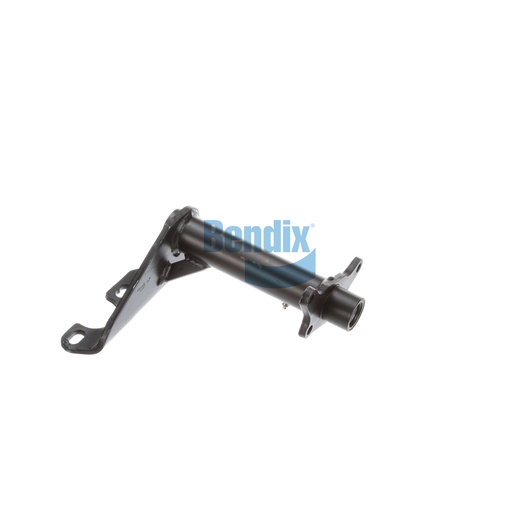

The Bracket Assembly is a crucial component for the Bendix foundation drum brake system, designed to provide the necessary support and stability for optimal braking performance. Constructed with a full arm style and single gusset, it is engineered for strength and durability under heavy use. The nylon bushings enhance smooth operation, reducing friction and wear over time. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 70° CW, this assembly ensures a precise fit for various commercial applications. Weighing only 7.05 lbs, it is easy to handle during installation. This bracket assembly plays a significant role in maintaining the integrity of your braking system, ensuring reliability on the road. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the ideal destination, providing quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
70° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
7.05 lb
