K083535
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

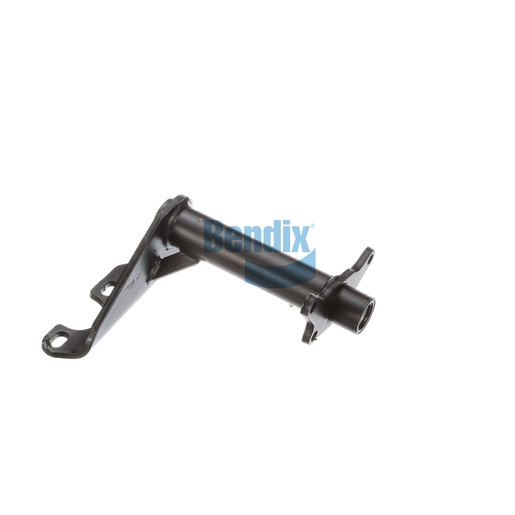

The Bendix Bracket Assembly is a key component designed for optimal performance in foundation drum brakes, providing essential support for air chambers and camshafts. With a robust full arm style and durable bushings, this assembly is built to withstand the rigors of heavy-duty applications. Featuring a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 76° CW, it ensures a secure fit that enhances the overall efficiency of your braking system. This high-quality assembly is essential for maintaining safety on the road. When it comes to purchasing genuine Bendix OEM parts, Source One Parts Center ensures you receive only the best for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
76° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.74 lb
