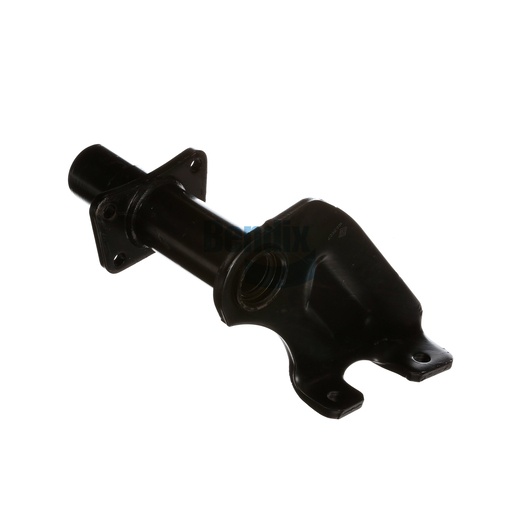

K088477
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a meticulously crafted component that plays a pivotal role in maintaining the integrity of your commercial vehicle's braking system. Designed with a scalloped arm style and bronze bushings, this assembly provides enhanced strength and durability under heavy loads. With a camshaft bracket angle of 79° clockwise and an adjustable slack length of 6.00 inches, it ensures a secure fit for various braking applications. The assembly is also lightweight, weighing only 14.5 pounds, making it easier to handle during installation. This part efficiently supports the air chamber and camshaft, promoting optimal brake performance and vehicle safety. When it comes to purchasing genuine Bendix parts, Source One Parts Center is your best option, delivering quality and reliability for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
6.00 IN
Camshaft Bracket Angle
79° CW
Harmonized System (HS) Code
830230
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Country of Origin
United States
Weight
14.5 lb
