$244.95
$293.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

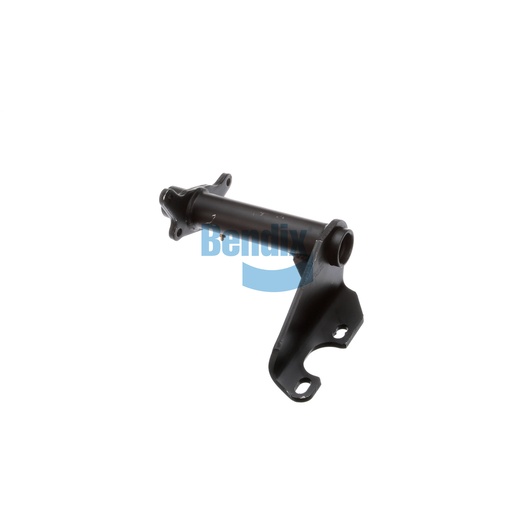

The Bracket Assembly by Bendix is meticulously engineered to enhance the performance and reliability of your commercial truck's braking system. Featuring a single gusset and a full arm style, this bracket assembly provides robust support for the air chamber and camshaft, ensuring optimal function under heavy-duty conditions. With a camshaft bracket angle of 64° CCW, it facilitates improved braking efficiency, making it a key component for safety on the road. The nylon bushings used in both inboard and outboard positions are designed to reduce friction and wear, extending the life of the assembly. This lightweight bracket, weighing in at just 6.0 pounds, is easy to install and compatible with various drum brake systems. By choosing genuine Bendix parts, you are investing in quality and durability. Source One Parts Center stands out as the best source for authentic Bendix OEM parts, providing excellent customer service and unmatched quality.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
6 lb
