K090175

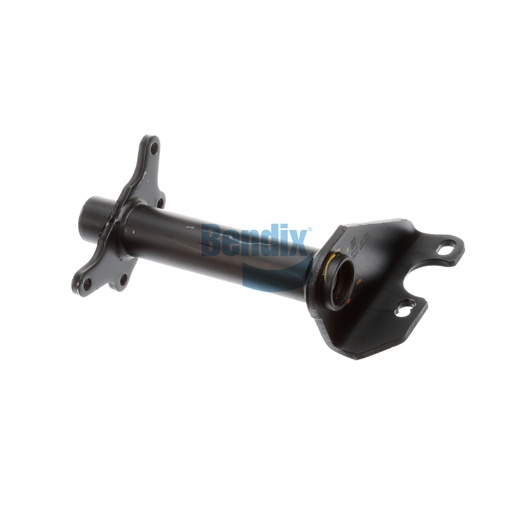

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component designed to enhance the performance of your vehicle's drum brakes. With its single gusset design and full arm style, this assembly marries strength with a lightweight profile, making it ideal for heavy-duty applications. The nylon bushings provide smooth operation while reducing wear and tear, ensuring a long-lasting solution for your braking system. The camshaft bracket angle of 64° clockwise facilitates precise alignment for effective braking performance. This bracket assembly's adjustable length between 5.50 and 6.00 inches allows it to fit various configurations, and it weighs a manageable 15.0 lbs, making installation straightforward. When you need reliable and efficient braking solutions, this assembly is a must-have for your fleet. For genuine Bendix OEM parts, Source One Parts Center is the best choice, delivering quality you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15 lb
