K090374
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

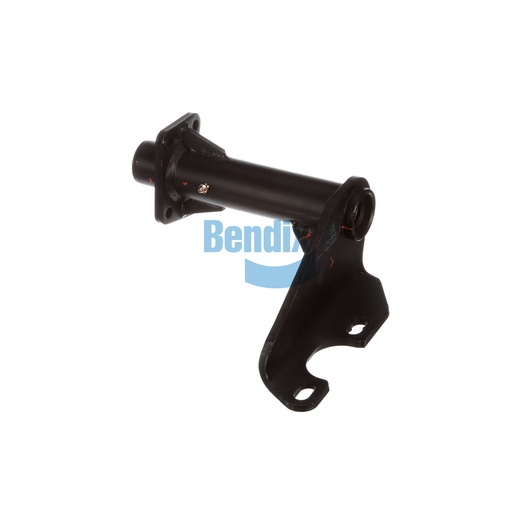

The Bendix Bracket Assembly is a vital component of the braking system for commercial vehicles, engineered for durability and reliability. With a full arm style and triple gusset design, it provides exceptional support for air chambers and camshafts, ensuring optimal brake performance. The bronze inboard and outboard bushings offer enhanced durability while minimizing wear, making this assembly ideal for heavy-duty applications. With an adjustable slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 346 degrees counterclockwise, it facilitates accurate positioning during installation. Weighing 14.0 lbs, this assembly is both robust and manageable. For those in need of high-quality Bendix OEM parts, Source One Parts Center is your go-to source, providing the best components for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.00
Camshaft Bracket Angle
346° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Full
Gusset
Triple
Country of Origin
United States
Weight
14 lb
