K090423

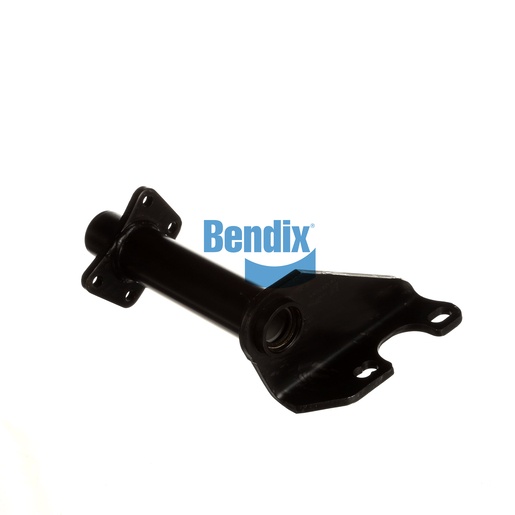

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is key to maintaining the performance and safety of your vehicle's braking system. With a full arm style and bronze bushings, it ensures durability and effective operation. Featuring a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 54° clockwise, it promotes optimal alignment and performance. Weighing 6.1 kg (13.5 lb), this assembly is designed to last in demanding environments. For all your Bendix OEM parts, Source One Parts Center is the reliable choice for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
54° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.5 lb
