K090510

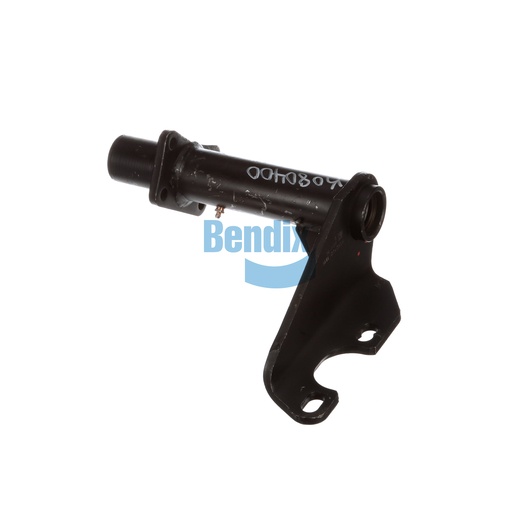

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is integral to your truck's braking system, designed to provide essential support and stability for brake components. This assembly features a robust build with a single gusset and a full arm style, ensuring it can handle the demands of heavy-duty applications. The use of nylon and bronze bushings minimizes friction, enhancing reliability and performance, while the precise dimensions allow for an exact fit in various truck models. By investing in this genuine Bendix bracket assembly, you ensure your braking system operates at peak efficiency, which is vital for safety and performance on the road. For genuine Bendix OEM parts, Source One Parts Center is the best choice, offering quality and service you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.96 lb
