K090511

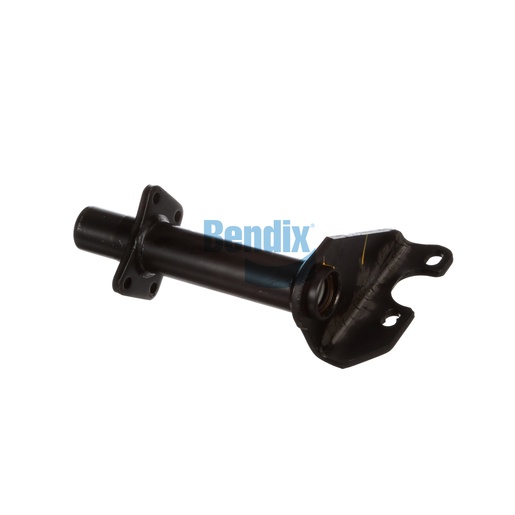

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical component for ensuring the stability and performance of your vehicle's braking system. Crafted with precision, this assembly features a full arm style and a single gusset design, providing the necessary support for brake components under heavy loads. With nylon bushings for enhanced durability, this assembly is designed to last, making it an ideal choice for commercial vehicles that demand reliability. Measuring 15.00 inches centerline to centerline, it is engineered for a perfect fit in various applications, ensuring seamless integration into your vehicle's braking system. When it comes to sourcing high-quality Bendix OEM parts, Source One Parts Center is your best option, offering a wide selection of genuine components to keep your fleet running smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.07 lb
