K092269

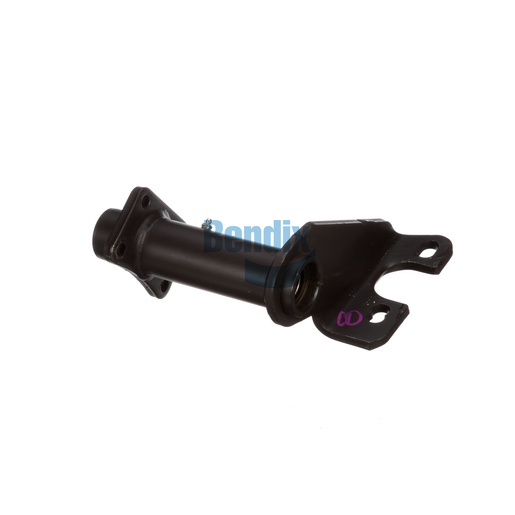

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is essential for the optimal function of your vehicle's foundation drum brake system. This high-quality assembly is proudly manufactured in the USA, underscoring Bendix's commitment to exceptional performance and durability. Designed to support heavy-duty applications, it features robust materials that ensure long-lasting reliability and effective braking power. Weighing 5.4 kg, this assembly is engineered for precise fitment and easy installation, making it an excellent choice for both truck operators and fleet professionals. When you need genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and customer satisfaction are our top priorities.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
326° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.85 lb
