K092990
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

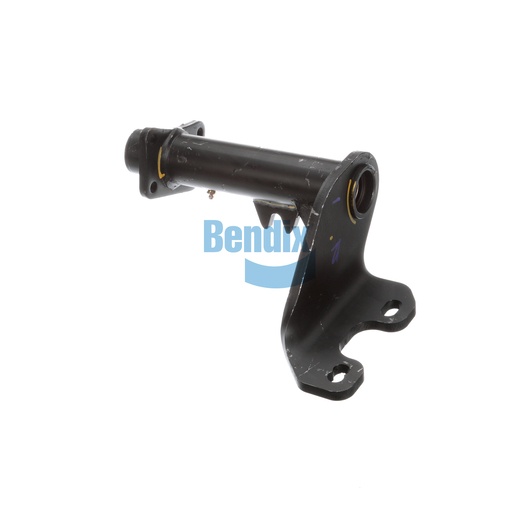

The Bracket Assembly is a crucial component designed for Bendix Foundation Drum Brakes, providing reliable support and performance in demanding commercial vehicle applications. This assembly features a scalloped arm style with a single gusset for added strength, ensuring it can withstand the rigors of heavy-duty use. With a slack length that adjusts between 5.50 and 6.00 inches and a camshaft bracket angle of 66° CCW, it is engineered for a precise fit that optimizes braking efficiency. The durable nylon bushings provide longevity and reduced wear, ensuring your braking system operates smoothly. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your trusted partner, offering high-quality components to keep your vehicle running safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Centerline to Centerline) [IN]
15.75
Length (Basic Weld Set)
2.563 IN
Gusset Angle
30°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
66° CCW
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
15.68 lb
