K093612

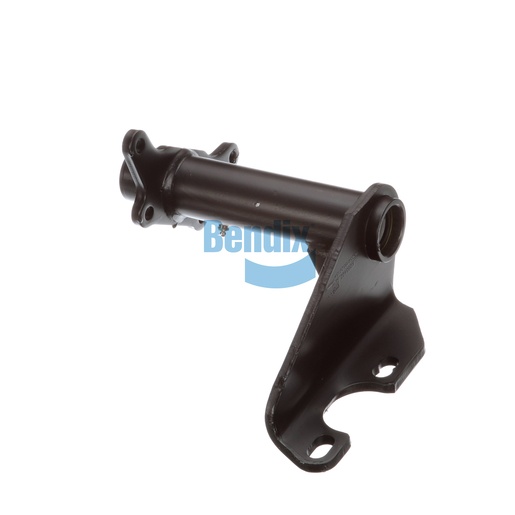

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital component within the foundation drum brake system, engineered to ensure your commercial vehicle's braking system operates seamlessly. Featuring a robust design with nylon bushings, this assembly provides excellent durability and resistance to wear, making it ideal for heavy-duty applications. The precision engineering of this bracket allows for optimal alignment of the braking components, which is crucial for maintaining responsive braking performance. With its thoughtful design and high-quality materials, the Bracket Assembly contributes to the overall safety and reliability of your vehicle. For the best in genuine Bendix OEM parts, Source One Parts Center stands out as your trusted source, offering exceptional quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.6 lb
