$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

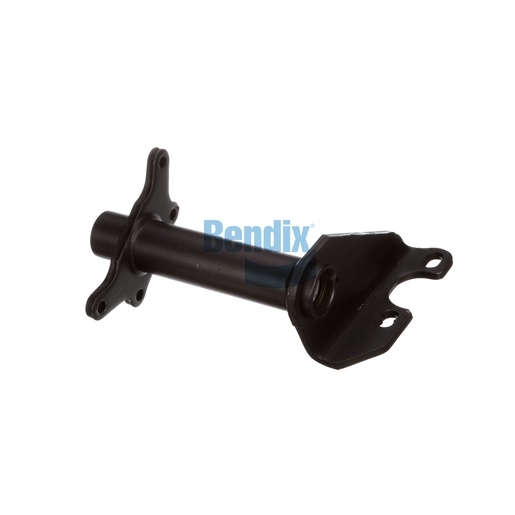

The Bendix Bracket Assembly is a pivotal element in your truck's foundation drum brake system, expertly engineered to provide essential support and stability. This assembly features a full arm style with nylon bushings, combining strength with a lightweight design for optimal performance under heavy-duty conditions. The camshaft bracket angle of 56° clockwise facilitates precise alignment, ensuring that the braking system functions effectively. Its adjustable length of 5.50 to 6.00 inches allows for compatibility with various installation needs, while its weight of 13.98 lbs ensures robust support without compromising efficiency. The single gusset design enhances its durability, making it an excellent choice for fleet operators seeking reliable braking solutions. For those looking to enhance their vehicle's braking performance, Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring you receive quality products every time.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.98 lb
