K094076

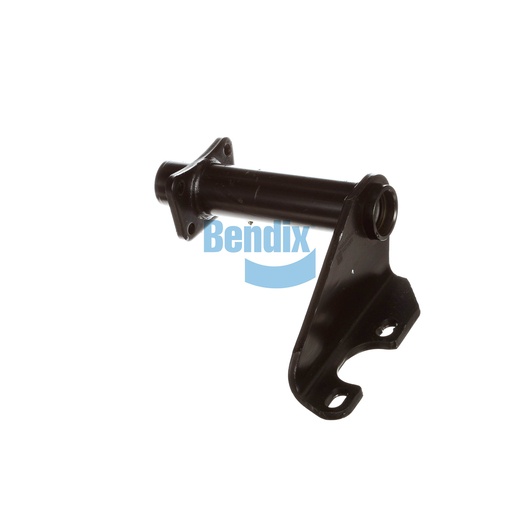

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital component for securing air chambers and camshafts in foundation drum brake systems. This assembly features a full arm style with nylon bushings, providing a reliable and durable solution for heavy-duty applications. With a camshaft bracket angle of 84° CCW and an adjustable slack length of 5.50 to 6.00 inches, this bracket ensures precise alignment and effective braking performance. Crafted in the USA, it upholds Bendix's high standards of quality and reliability. Source One Parts Center is the best place to find genuine Bendix OEM parts, giving you confidence in your purchase and ensuring your commercial vehicle performs at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
84° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.5 lb
