$319.95
$383.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

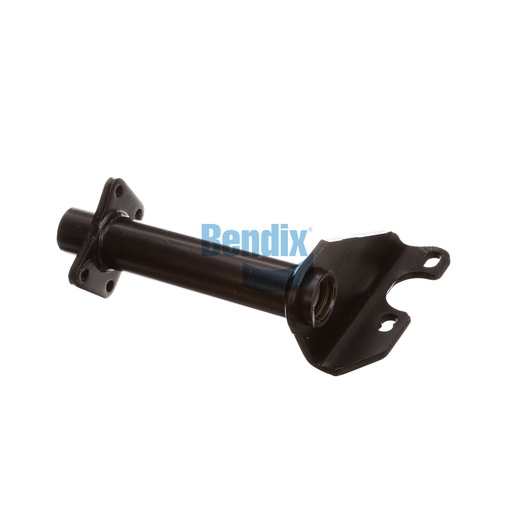

The Bendix Bracket Assembly is a vital component designed to enhance the performance of your commercial vehicle's braking system. This assembly provides essential support for air chambers and camshafts, ensuring optimal alignment and functionality. Built with high-strength materials, it promises durability and reliability, even in the most demanding environments. The precision engineering allows for easy installation, making it a perfect replacement part for fleet maintenance or individual repairs. Choose Source One Parts Center for your genuine Bendix OEM parts, where quality and exceptional customer service come together for your vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.55 lb
