K096919

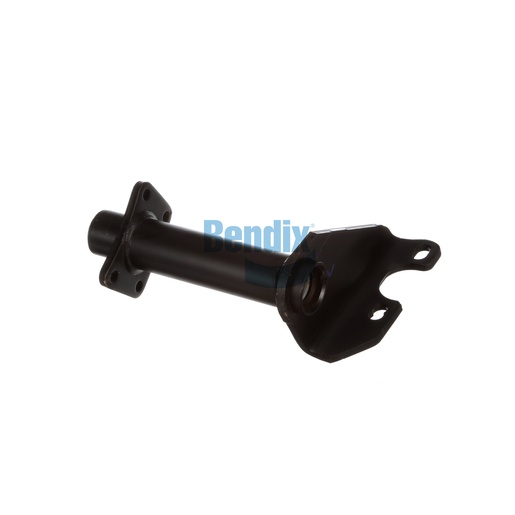

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an integral part of the foundation drum brake system, providing essential support and stability for optimal braking performance. This assembly features high-quality materials and a well-engineered design, including nylon bushings for enhanced durability and reduced wear. Its precise dimensions ensure compatibility with a variety of truck models, making it ideal for both maintenance and upgrades. With its reliable construction, this Bracket Assembly helps maintain correct brake alignment, resulting in improved vehicle control and safety. When it comes to sourcing authentic Bendix OEM parts, Source One Parts Center is the top choice, ensuring you receive only the best products for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13 lb
