K097006

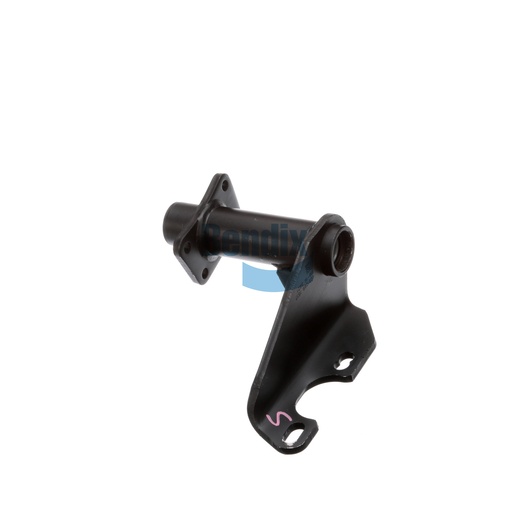

Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Ensure the reliability of your truck's braking system with the Bendix Bracket Assembly, an essential component that delivers stability and support to critical brake parts. Designed with a single gusset and full arm style, this bracket features nylon bushings that reduce friction and enhance longevity, while the 104° counter-clockwise camshaft bracket angle allows for optimized performance. Its compact design, with a centerline-to-centerline measurement of 11.50 inches, makes it a versatile choice for various applications in your fleet. The lightweight structure, weighing just 12.32 lbs, does not compromise on strength, ensuring your braking system operates effectively under demanding conditions. Trust Source One Parts Center for all your Bendix OEM needs; our commitment to quality and customer satisfaction makes us the best choice for commercial truck parts.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
104° CCW
Length (Centerline to Centerline) [IN]
11.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
830230
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.32 lb
